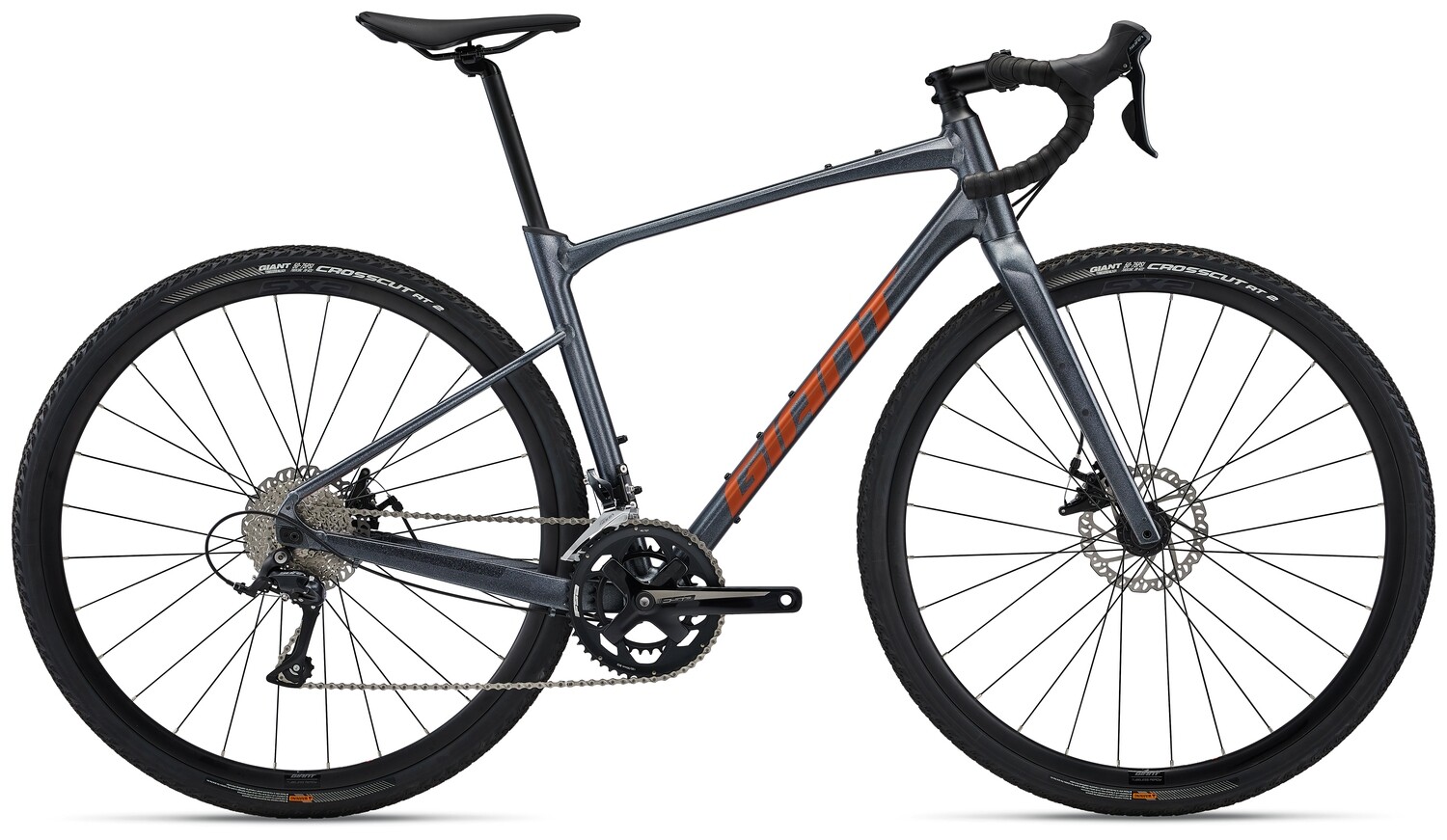

Revolt 2

The all-new Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.

Composantes:

Cadre:	ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fourche:	Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Amortisseur:	N/A
Jantes:	Giant S-X2 Disc wheelset
Moyeux:	Giant S-X2 Disc wheelset
Rayons:	Giant S-X2 Disc wheelset
Pneus:	Giant CrossCut AT 2, 700x38c, tubeless
Boîtier de pédalier:	cartridge
Pédalier:	FSA Vero Pro, 32/48
Manettes:	Shimano Sora, 2x9
Dérailleur avant:	Shimano Sora
Dérailleur arrière:	Shimano Sora, long cage
Cassette:	Shimano HG400, 11x34
Chaîne:	KMC X9 with Missing Link
Freins:	Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
Leviers de frein:	Shimano Sora
Guidon:	Giant Contact XR Ergo-Control, 31.8mm
Poignées:	cork tape with gel
Potence:	Giant Contact, 8-degree
Tige de selle:	Giant D-Fuse, alloy, 14mm offset
Selle:	Giant Approach
Extras:	tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
